Ultima > I Mondain > Development > Local Map Type

Place Map Data Type

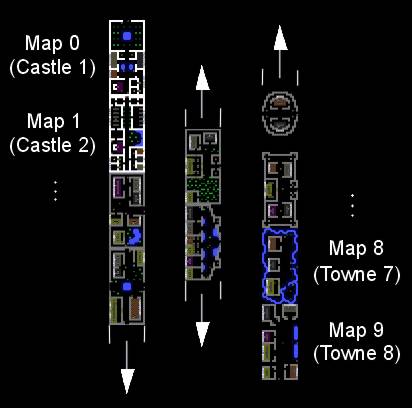

   The towne and castle map file (TCD.BIN) is a fixed length file 6,840 bytes long. The map tile data is stored top to bottom, left to right, on a byte data boundary (8-bits per tile). This does mean that the data is on a right angle to its screen representation. Dimensions of each map are 38 tiles wide, west to east, and 18 tiles high, north to south. There are ten maps. The first two are castle one and castle two. They are followed by the towne maps one through eight.
